In today's highly customized world of electronics, standard wiring harnesses often become bottlenecks to innovation and performance. Have you ever delayed a project due to wiring harnesses that are the wrong size, don't meet performance standards, or can't adapt to special environments? We understand that "standard" solutions can't solve all problems.
?
As a professional
Custom Wiring Harness manufacturer, our mission is not just to provide products, but to work with you to go beyond generic standards and create high-performance connectivity solutions for your unique applications.
?
Why is "going beyond the standard" crucial?
?
Standard wiring harnesses are designed to meet a wide range of basic needs, but they cannot handle:
?
Strict physical space constraints
?
Extreme temperature, vibration, or chemical environments
?
Extremely high requirements for signal integrity, shielding, and interference immunity
?
Specific industry compliance and safety certifications (such as UL, CE, RoHS)
?
This is where the value of customized wiring harnesses lies. We believe that behind every special requirement lies an opportunity to enhance product competitiveness and ensure equipment reliability.
?
How do we turn your "special needs" into reality?
?
Our customization process is a deeply collaborative and meticulous journey, ensuring that the final product not only meets but exceeds your expectations.
?
Step 1: In-depth Needs Assessment – ??We Listen to More Than Just “Parameters”
?
We never start with a simple list of specifications. Our engineering team will engage in in-depth discussions with you to understand:
?
What is the overall application scenario for the final product? (e.g., industrial robots, medical equipment, new energy vehicles)
?
What physical and environmental stresses will the
Wiring Harness face? (e.g., continuous bending, high humidity, oil contamination)
?
What are your long-term production and cost goals?
?
Through this in-depth consultation, we can anticipate unspoken challenges and address them from the initial design stage.
?
Step 2: Collaborative Design and Engineering – Transforming Ideas into Manufacturable Blueprints
?
Based on your needs, our engineering team will be involved in the design:
?
Cable Selection: We not only select wire gauge and core count, but also recommend the most suitable cable material (e.g., high-temperature silicone wire, flexible drag chain cable) based on current, voltage, signal type, and environmental factors.
?
Connector Matching: We ensure that the connector type (e.g., M-series, automotive-grade, board-to-board) perfectly matches your ports, providing excellent mating life and connection stability.
?
Drawings and Prototypes: We provide detailed 2D/3D drawings and samples for your confirmation. Your feedback will be quickly integrated until the design is perfected.
?
Step 3: Precise Control of Materials and Processes – The Cornerstone of High Performance
?
"High performance" stems from meticulous attention to every detail.
?
Superior Raw Materials: We collaborate with globally renowned cable and connector suppliers to ensure quality from the source.
?
Precise Crimping and Termination: Using fully automated crimping machines, we ensure that the contact resistance and pull-out force of each terminal meet the most stringent standards.
?
Professional Shielding and Protection: We offer various shielding solutions, including braiding and wrapping, to effectively combat EMI/RFI interference. Customized protective sleeves, conduits, or injection molding are available as needed to provide optimal abrasion and impact resistance.
?

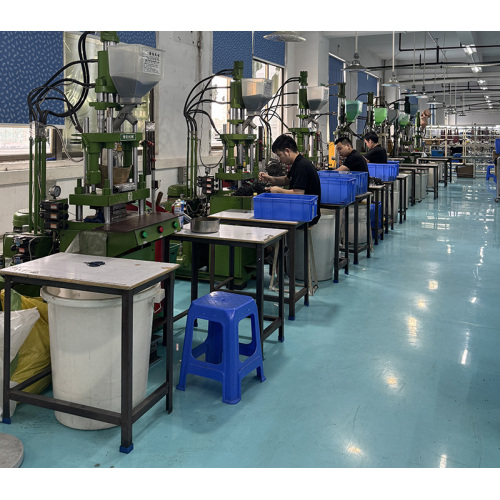

Step 4: Stringent Testing Exceeding Industry Standards – We Don't Believe in "Approximately"
?
In our factory, every custom wire harness must pass our "quality firewall" before leaving the factory:
?
100% Continuity Test: Ensuring that every circuit is correct and error-free.
?
Withstand Voltage Test: Verifies insulation strength to ensure safe use.
?
Mechanical Life Test: Simulates insertion/removal and bending in real-world applications to ensure durability.
?
Environmental Simulation Test: Tests the environmental adaptability of the wiring harness in temperature and humidity chambers and vibration tables.
?
Case Study: How We Help Clients Solve Challenges
?
Challenge 1: A medical equipment manufacturer needed an extremely compact wiring harness capable of withstanding multiple sterilization cycles.
?
Our Solution: Utilizing miniature connectors and ultra-thin coaxial cables, encased in medical-grade silicone, we successfully achieved high-speed signal transmission within a limited space while meeting biocompatibility and chemical resistance requirements.
?
Challenge 2: An outdoor communication equipment manufacturer's cables consistently became brittle in extreme cold and aged in extreme heat.
?
Our Solution: We recommended and customized a special TPU material cable with a wide temperature range (-40°C to 125°C), completely solving the environmental adaptability problem and significantly reducing the field failure rate.
?
Let us be your reliable extension team.
?
For us, "customization" means a commitment—a commitment to deeply understanding your business, a commitment to empowering you with our engineering expertise, and a commitment to delivering superior performance and reliability in every product we deliver.
?
When standard wiring harnesses fail to meet your vision, that's when we begin our collaboration.
?
Contact us today for a free initial design consultation and let's explore how to "go beyond the standard" for your next project!
Dongguan Suyi Electronics Co., Ltd.
